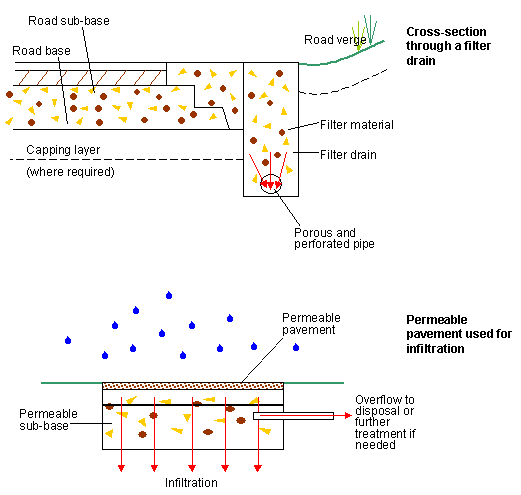

Filter drains and permeable surfaces are devices that have a volume of permeable material below ground to store surface water. Runoff flows to this storage area via a permeable surface. This can include:
For furhter information on permeable surface click here
The water passes through the surface to the permeable fill. This allows the storage, treatment, transport and infiltration of water. Both the surface and the sub-base of a pavement must allow the passage of water - for this reason, porous asphalt laid on a conventional impermeable base is not a permeable surface.
The amount of water stored depends on the voids ratio of the permeable fill or sub-base, the plan area and depth. Water can be disposed of by infiltration, an underdrain, or pumped out for harvesting or discharge. Overflow can be via a high level drain or controlled surface flow. In some situations the water should not be stored for extended periods as it can affect the strength of the surrounding soil.
The permeable fill or sub-base traps sediment, thereby cleaning up runoff. Recent research shows that they also provide some treatment for other pollutants, such as oil.

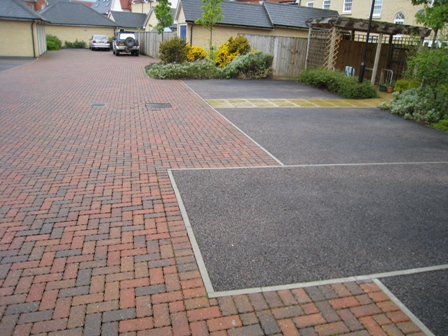

The variety of surfaces is wide enough for the landscape architect to select a hard landscape style to suit the style of the development. By their nature, filter drains and permeable surfaces ensure an efficient use of space, providing options for multiple use.
